Looking for custom manufactured springs?

We manufacture springs to any given specifications using cold forming and are manufactured with highest quality control.

Looking for custom manufactured springs?

We manufacture springs to any given specifications using cold forming and are manufactured with highest quality control.

About Us

A A Spring & Wire (PTY) Ltd was established in 1965 and has been operating with the highest quality and satisfaction for more than 57 years. We deal in large and small industries throughout South Africa such as:

Automotive

Electrical Engineering

Display Groups

Agriculture

Mining

General Engineering

Our Products

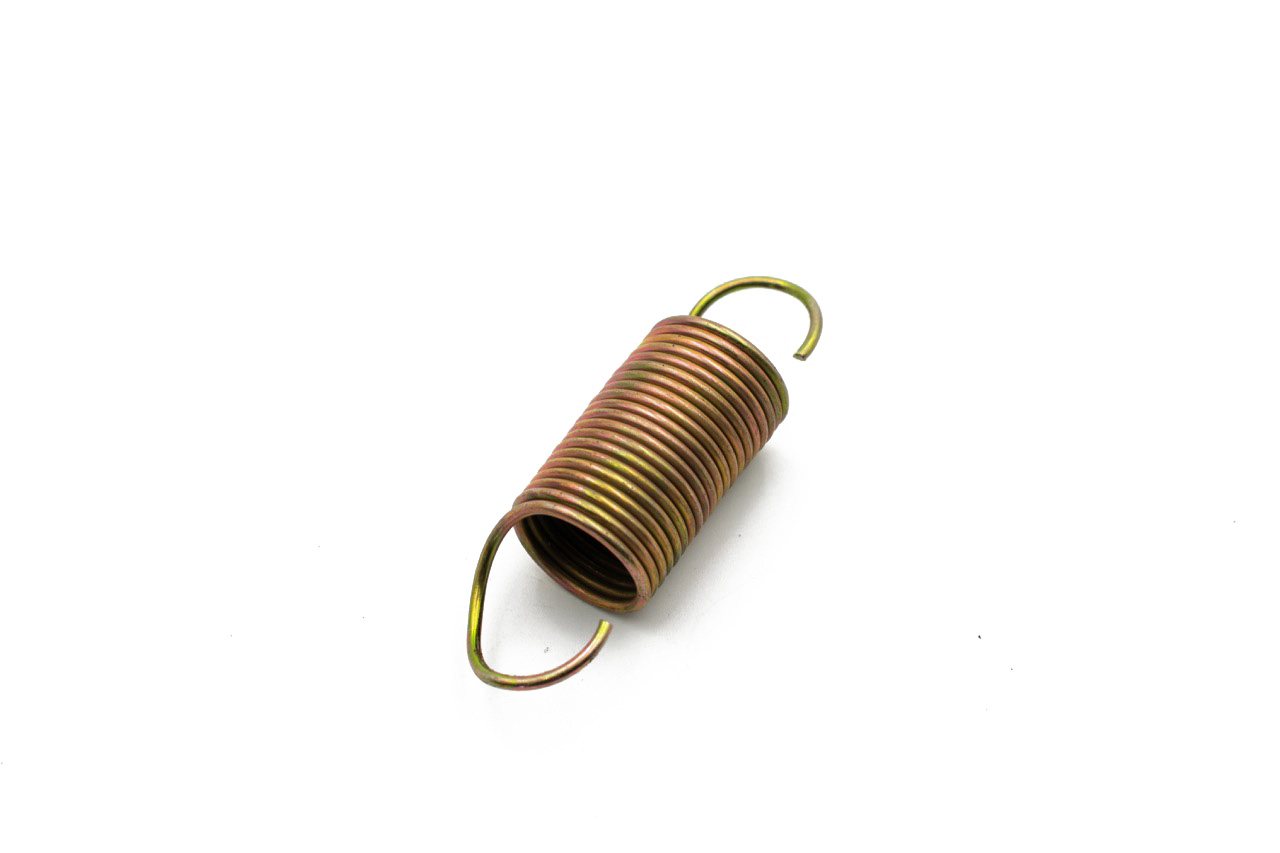

Tension Spring

Tension Springs

Can be used in tooling such as pliers to any Residential and Industrial Garage doors and even in Automotive Industries for example, brake shoe springs and carburetors. Tension springs can also be used for trampolines in playground equipment.  A tension spring is attached on both ends and active when stretched.

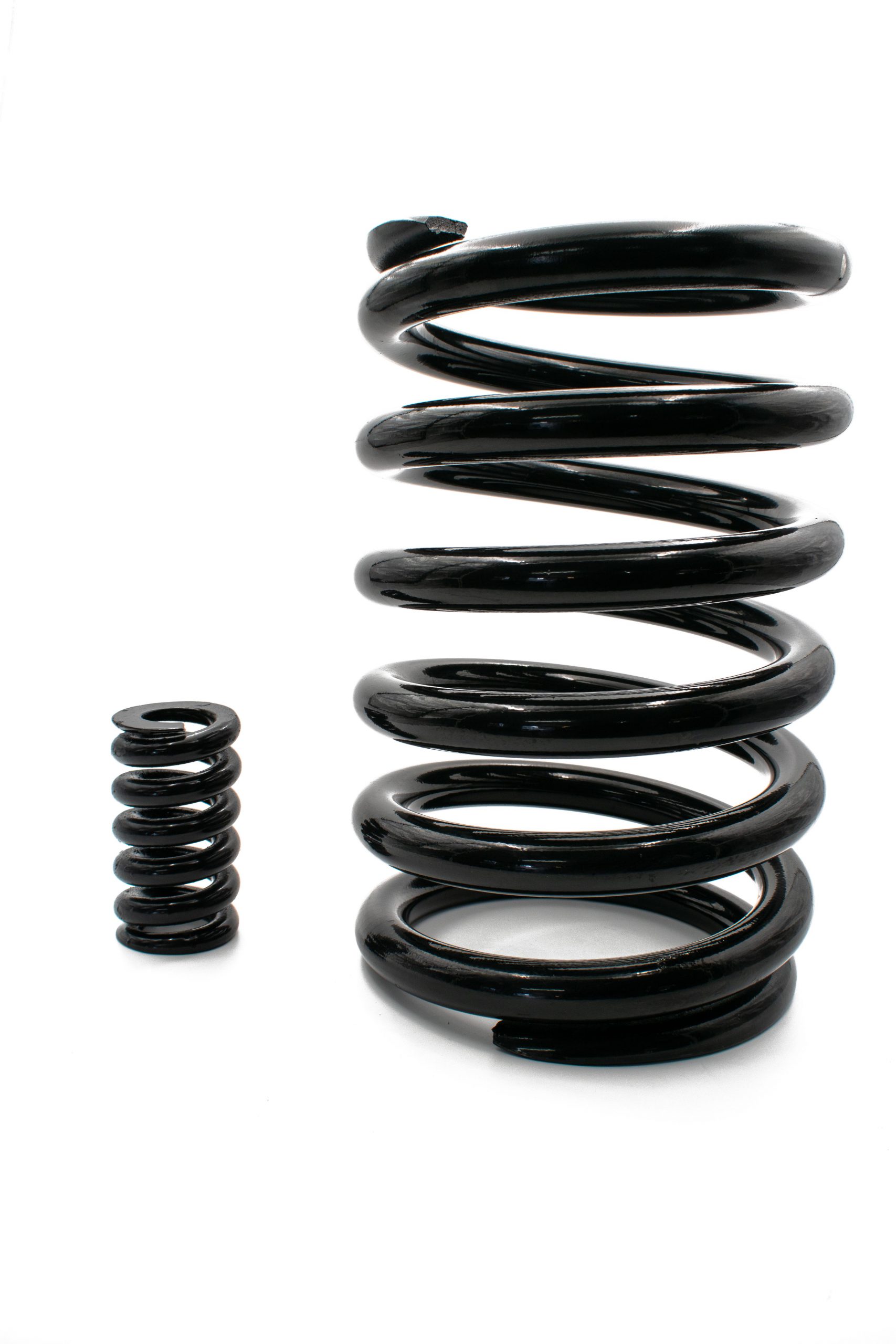

Compression Spring

Compression Springs

From as little as a click of Pen to anything as large as industrial engineering valves and Truck body springs which are active when applying a load or force.

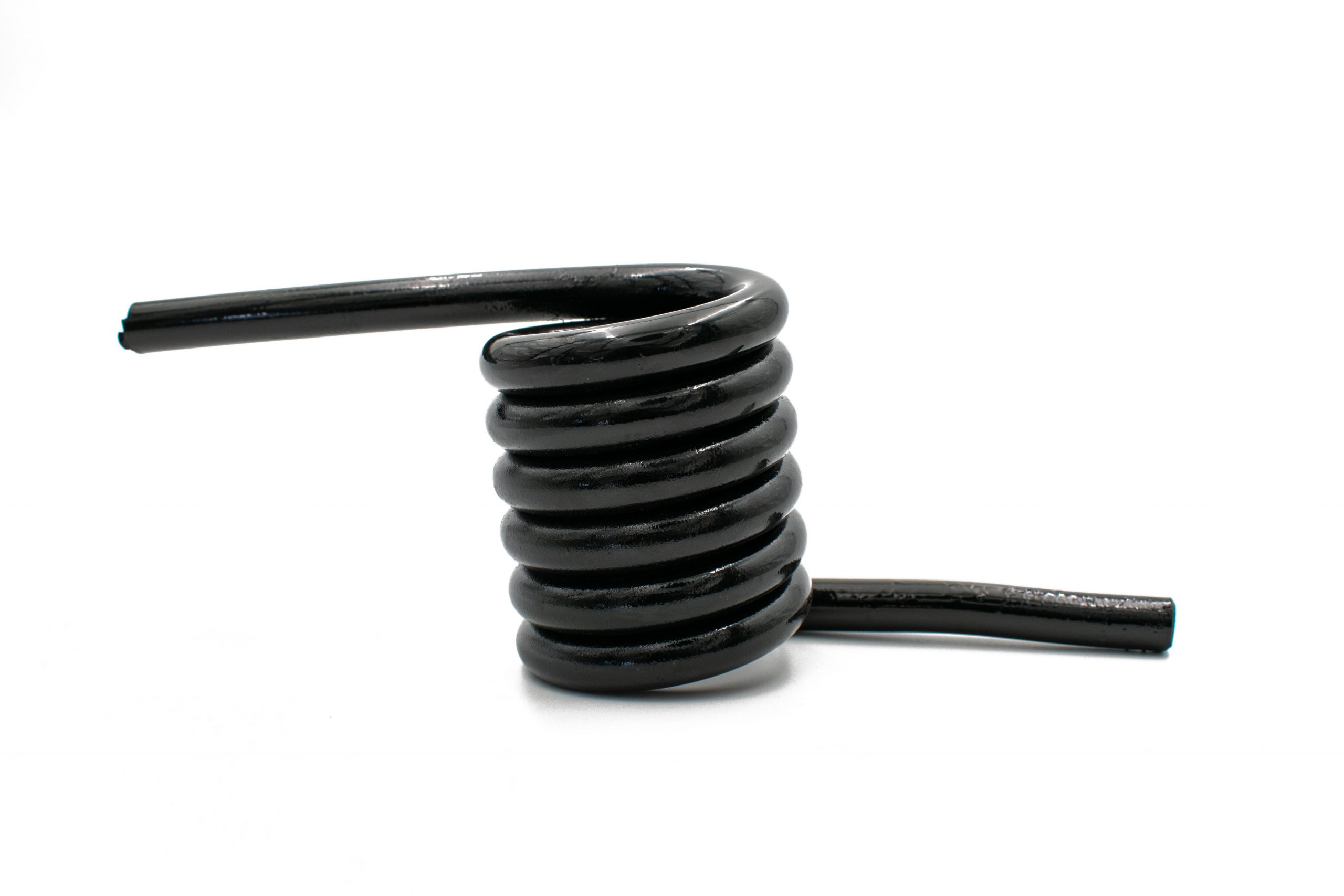

Torston Spring

Torsion Springs

Small torsion springs can be found in something as simple as a clothing peg and spread over a large range such as Tailgates, Load beds for Trucks and Farming Implements. Torsion springs is active in either a push or pull action. One end will apply force while the other end remains in a fixed position.

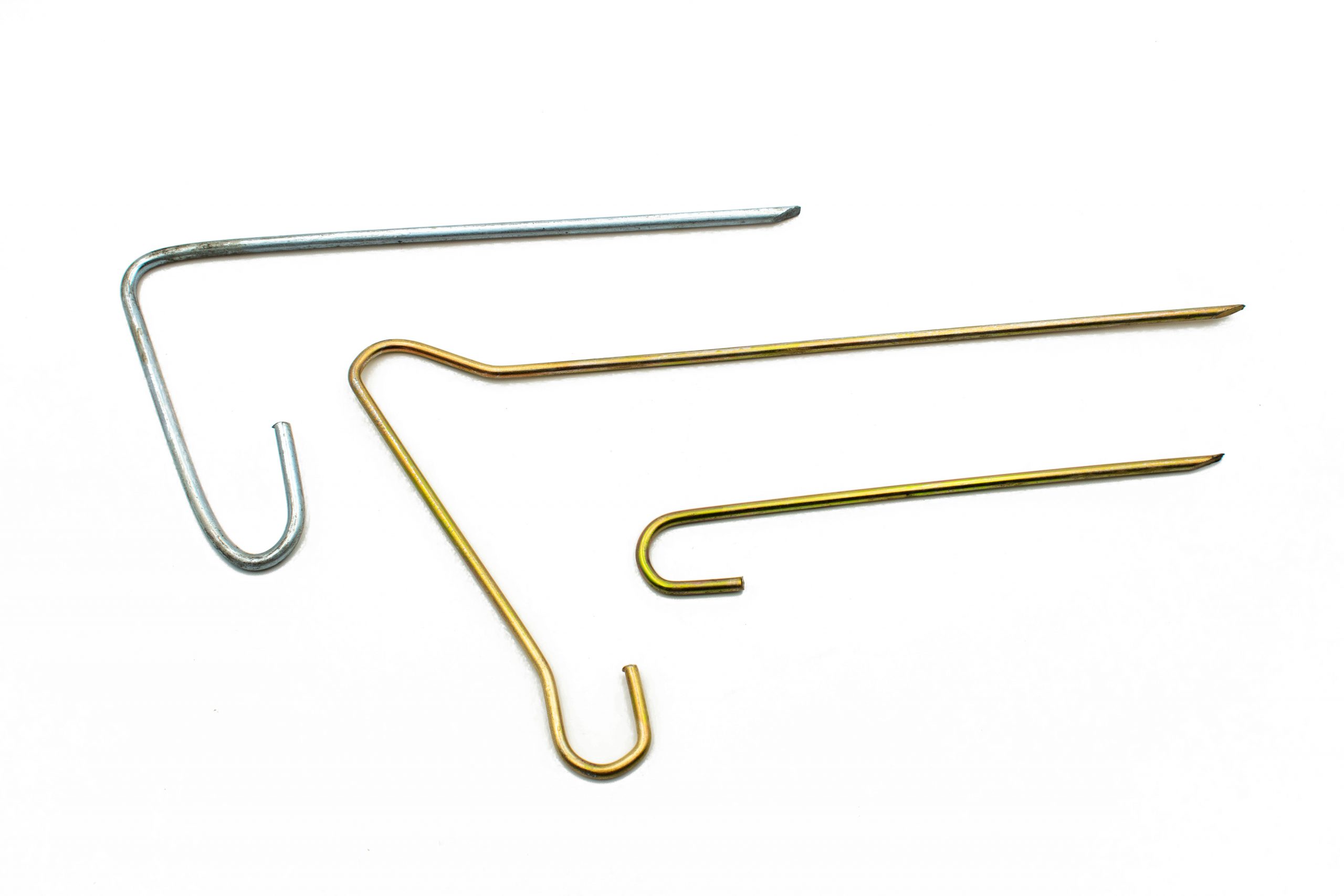

Wire Forming

Wire Forming

Mainly manufactured with a soft wire. The one type of spring with the most expanded range of usage in any industry. Designed in any given shape or size. Just to give a few examples. Mining is one of the largest Industries with a massive demand for wire formings such as Clips and Hooks.   Display pins, hooks and hangers. Single and Double rake tines for Agricultural usage.

Technical Specs

Specifications Abb. Description
Wire DIA Ø Thickness of wire
Outside DIA OD Measured on outside of Spring
Inside DIA ID Measured on inside of Spring
Total Coils TC Total Coils incl. Dead Coils
Active Coils AC Total Working Coils excl. Dead Coils
Body Length BL Body Length excl. Loops.
Total Length TL Total Length incl. Loops.
Free Length FL Length incl. Gap / Pitch
Ends ESG Ends Square and Grounded
Spring Steel SP/ST Material – Hard
Stainless Steel ST/ST Material –Stainless/Rust-free
Mild Steel M/ST Material – Soft
Pitch PITCH Measurement from centre of one coil to centre of next coil.
Gap GAP Measurement of space between two coils.
